8-Zone PA Amplifier,3U,800W-2000W available

Product Overview

A high-performance commercial public address amplifier designed for multi-zone background music and paging systems. Features an integrated media player (USB/SD/FM/BT) with screen, 5-band graphic equalizer, 8-zone matrix control, MIC 1 priority override, and comprehensive 70V/100V/200V/4-16Ω speaker outputs.

Key Features

• 8-Zone Output Control: Independent level adjustments for 8 discrete zones (CH1–CH8).

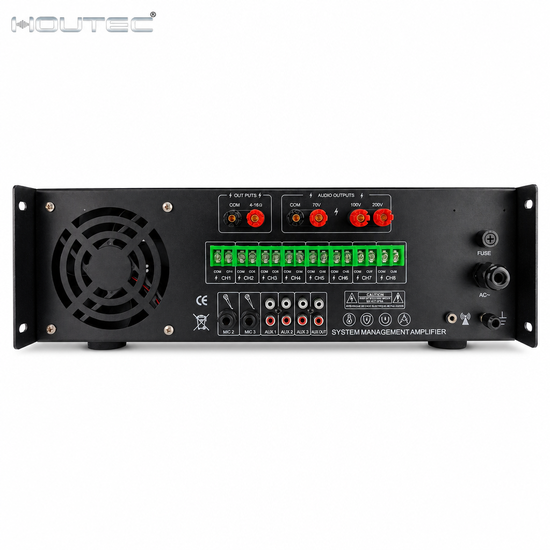

• Multi-Tap Speaker Outputs: Supports 4–16Ω low impedance, 70V/100V/200V constant voltage line outputs (up to 2000W).

• 5-Band Graphic Equalizer: Precision ±12dB adjustment at 250Hz, 500Hz, 1kHz, 4kHz, and 8kHz, with master Treble and Bass controls.

• Built-in Media Player: Integrated USB, SD, FM tuner, and Bluetooth audio player with status display screen.

• Microphone Priority Override: MIC 1 features dedicated -30dB auto-muting for voice announcements over background music.

• Flexible Audio Connectivity: 2 Microphone inputs, 3 Line inputs, and 1 AUX/Record line output.

• Selectable Frequency Response: Switchable low-cut filter to optimize speech intelligibility and acoustic performance.

• Standard 19" 3U Rack Mount: Rugged metal enclosure with integrated rack ears.
